What Can Be Done with A Ball Mill

Have you ever seen fine powder made from hard rock? That’s the work of a ball mill in action.This tool crushes, blends, and shapes materials. It’s used in mining, ceramics, pharma, and more.

In this post, you’ll learn what ball mills can do, which industries rely on them, and why they’re so powerful.

Understanding How a Ball Mill Works

Ball mills may look simple, but inside, they do powerful work.

Let’s break down how they operate and the types you’ll find.

Basic Working Principle

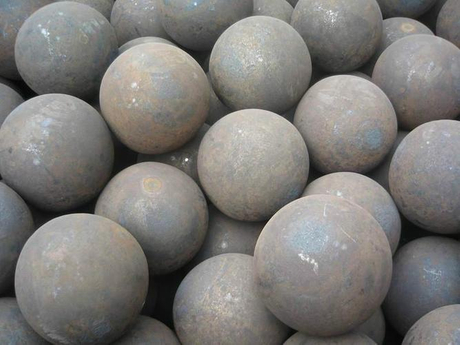

A ball mill rotates a drum filled with grinding media—usually steel or ceramic balls.Material is added to the drum and tumbled as it spins.The balls move with the rotation, then drop and collide.This crushing action reduces material size through impact and friction.Friction scrapes and rubs the surface.Impact smashes larger pieces into smaller ones.

There are two main modes of operation:

● Wet Milling: Water or liquid added to assist grinding.Great for mixing and preventing heat buildup.

● Dry Milling: No liquid involved.Good for brittle, dry materials and powders.

Main Types of Ball Mills

Different ball mills are built for different tasks.Each one suits a particular scale and purpose.

Planetary Ball Mills

Small but powerful.Jars spin on their own axis and around a central hub.Used in labs and research.Perfect for nano-particles and precision mixing.

Horizontal Ball Mills

Large rotating cylinders used in factories.Used for continuous grinding of bulk material.Common in mining, cement, and chemical industries.Can run non-stop for high-volume work.

Vibratory / Attritor Mills

Use vibration or internal stirring for fast energy transfer.Media moves quickly inside a compact chamber.Best for rapid size reduction and fine particles.Popular in ceramics,pigments, and battery materials.

Primary Applications of Ball Milling

Ball milling isn’t just for grinding rocks.It’s a powerful tool used across many industries.

Grinding and Size Reduction

This is the most common use.The mill breaks hard materials into fine powder.It works on ores, minerals, ceramics, and even metals.Ball size and speed control how fine the powder becomes.You can adjust milling time or media size.That way, you get the particle size you want.

Mixing and Blending Powders

Ball mills are great at combining powders.They mix different materials into one uniform blend.This matters when consistency is key.Think of battery mixes or pharmaceutical blends.The tumbling action spreads powders evenly.Each particle touches and mixes with others.

Mechanical Alloying and Composite Formation

This is more than mixing—it’s transformation.Mechanical alloying creates new materials by impact.Balls strike metal powders over and over.The repeated collisions cause atoms to fuse.It’s how you make metal matrix composites.Also used for new alloys and nanomaterials.

Industry-Specific Uses of Ball Mills

Ball mills are everywhere—from mines to medicine.Each industry uses them for a different reason.

Mining and Mineral Processing

In mining, mills crush ores into fine powder.This makes it easier to extract gold, iron, or copper.They act as the first step before flotation or smelting.Size reduction is critical for separating valuable minerals.

Cement and Construction

Cement plants use mills to crush clinker.The goal is to produce fine powder for concrete mix.

They also help make additives like fly ash blends.Ball mills improve strength, setting time, and texture.

Ceramics and Glass Production

Raw ceramic needs fine milling to shape or glaze.Ball mills reduce kaolin, feldspar, or silica.Precision is key.Particle size affects how the glaze melts or how clay behaves.

Pharmaceuticals and Chemicals

Some compounds break down or clump easily.Ball mills handle them gently or under cooling.

Uniform particle size matters in tablets or capsules.It ensures accurate dosing and solubility.

Electronics and Nanotechnology

High-energy milling helps make tiny particles.These are used in batteries, sensors, and capacitors.Ball mills can create powders under 100 nm.They also help blend conductive and insulating materials.

Advanced Techniques Using Ball Mills

Ball mills aren’t just for grinding.They’re also tools for cutting-edge science and materials engineering.

Cryogenic Ball Milling

Cryogenic milling uses liquid nitrogen to cool the chamber.This keeps heat-sensitive materials from melting or degrading.Soft polymers, elastomers, and biological samples benefit most.Low temperatures make brittle fractures easier.The result is cleaner powder and better preservation.Also used to prevent oxidation during processing.

Reactive Ball Milling

Reactive milling triggers chemical reactions inside the drum.Balls grind the powders while heat and force spark synthesis.It’s used for solid-state reactions—no need for solvents.

Often applied to metal hydrides, carbides, and nanocomposites.The method is cleaner and faster than traditional chemistry.Plus, it can produce unique compounds not easily formed otherwise.

High-Energy Milling for Nanomaterials

Standard ball milling grinds to microns.High-energy milling takes it further—into nanoscale.

It uses faster rotation and stronger impact forces.This changes not only size but also structure and properties.Nanoparticles made this way are used in batteries, coatings, and medical devices.Some materials even become more reactive at the nano level.

What Materials Can Be Processed?

Ball mills can handle a wide range of materials.From hard rocks to soft polymers, they break, blend, and refine.

Ores and Minerals

Iron, copper, gold, and other ores grind easily in a mill.Milling prepares them for extraction or separation.Heavy-duty mills handle rough rocks and reduce them to powder.This step improves recovery in mining operations.

Metals and Alloys

Mills grind metal flakes, powders, or turnings.This supports powder metallurgy and alloy synthesis.Aluminum, magnesium, and steel are common targets.Mechanical alloying can mix them at the atomic level.

Ceramics

Hard, brittle materials like zirconia and alumina need impact grinding.Ball mills reduce them for glazes, structural ceramics, or electronics.Fineness affects sintering behavior, glaze flow, and durability.You can also combine ceramic powders with other phases.

Polymers and Organics

Soft plastics or organics can be cryo-milled.This prevents melting or degradation.Grinding polymers allows for precise mixing or recycling.Useful in drug delivery, composites, and biodegradable materials.

Glass, Carbon, Pigments, and More

Ball mills also grind glass shards into powders.This helps in ceramics, paints, or insulation.Carbon materials—like graphite or nanotubes—need controlled milling.Pigments benefit from tight particle size control.

Key Benefits of Using a Ball Mill

Ball mills aren’t just versatile—they’re efficient, adaptable, and powerful.

Uniform Particle Size

One of the biggest advantages?

They consistently produce fine, even powders.Uniformity improves mixing, melting, and reactivity.It also helps meet quality standards in critical industries.Whether you're milling metals or pharmaceuticals,even particle size leads to better results.

Scalable from Lab to Industrial Scale

Ball mills come in all sizes.Tiny benchtop units suit research labs.Larger models grind tons of material daily.You can easily scale from testing to full production.That makes process development smoother.No need to switch techniques or tools.

Cost-Effective for Large Batches

Once set up, ball mills are low maintenance.They use basic mechanics—rotation and impact.

They’re great for continuous production runs.And they don’t need expensive energy sources.For large batches, it’s one of the cheapest grinding options.Especially when compared to more complex tech.

Works with a Wide Range of Materials

Ball mills don’t limit you to one material type.From hard ores to soft organics, they handle it all.Change the media, speed, or temperature as needed.They can process metal, ceramic, polymer, and glass.Perfect for multi-industry setups or R&D labs.One tool, many functions.

Conclusion

Ball mills are used in mining, pharma, ceramics, and more. They grind, blend, and refine materials efficiently.Choose the right media and settings. It boosts performance and saves energy.Match the mill to your material and goal. That’s how you get the best results.

FAQ

Q: Can I use a ball mill for soft materials?

A: Yes, use cryogenic milling to prevent melting or clumping.

Q: What size of ball mill is best for small batches?

A: Lab-scale or planetary mills are ideal for precise, small-batch work.

Q: Is wet or dry milling better for ceramics?

A: Wet milling improves particle dispersion and reduces dust in ceramics.

Q: Can you do chemical reactions in a ball mill?

A: Yes, reactive ball milling enables solid-state synthesis during grinding.

Q: What happens if the wrong ball media is used?

A: It may cause contamination, poor grinding, or damage to the material or mill.
