Views: 0 Author: Site Editor Publish Time: 2025-04-14 Origin: Site
Crushing is a vital process in the mining, construction, and aggregate industries. It involves reducing large-sized raw materials into manageable and usable particles. The crusher is the central equipment in this size reduction process, designed to break down rocks, ores, and minerals into smaller fragments. While seemingly straightforward, the crushing process encompasses various stages, types of equipment, and intricate mechanical operations.
In mining and mineral processing, crushing refers to the primary phase of material size reduction. The process begins at the extraction point, often with the use of explosives to break raw materials from rock faces. Once transported, these larger fragments go through crushers for further downsizing before grinding and mineral separation.
Typically, any size reduction above 3 mm is categorized as crushing, while anything below 3 mm is considered grinding. Despite some cone crushers and impact crushers achieving sub-3 mm sizes, they still fall under the crushing process.
A common concern in material processing is energy efficiency. The following formula outlines the principle:
Input Ore + Energy → Crushed Ore + Sound + Heat
Only a tiny fraction of the energy input goes directly into particle breakage. According to Bake (1964), just 0.6% of total energy is used for actual crushing, while Austin suggested it could be slightly under 3%. These figures highlight that although energy usage is low in terms of breakage, optimizing machinery and processes is critical.
The choice of crusher depends largely on the hardness and abrasiveness of the material, the desired output, and stage of the crushing process.
| Crusher Type | Working Mechanism | Suitable For Material | Typical Use Stage |
|---|---|---|---|
| Jaw Crusher | Compression | Hard, abrasive | Primary |
| Gyratory Crusher | Compression + Eccentric Motion | Hard, large blocks | Primary |
| Cone Crusher | Compression | Medium-hard, abrasive | Secondary/Tertiary |
| Impact Crusher | Impact force (blow bars, anvils) | Soft-medium rocks | Secondary/Tertiary |
| Roll Crusher | Compression + Rolling | Soft-medium rocks | Secondary |
Most crushing systems are structured into three main stages:
This is the first stage where large materials are reduced for easier handling. Jaw crushers, gyratory crushers, and some impact crushers are suitable for this phase.
Output Size: Typically 4-6 inches
Objective: To produce material manageable for secondary crushing
Characteristics: High capacity, minimal shape focus
In this stage, material is further refined and shaped. Cone crushers are often used here because of their ability to handle varying material feed and produce a relatively uniform output.
Output Size: 1-4 inches
Objective: Controlled reduction for feed into tertiary crushers or mills
Key Metric: Reduction ratio (input size vs. output size)
The final stage is for achieving the target particle size and shape for end-use. Machines like vertical shaft impactors (VSIs), cone crushers, or high-pressure grinding rolls are common.
Output Size: Sand or very fine particles
Objective: Precise shaping, cubical product
Jaw crushers use a compressive force through a moving jaw and a fixed jaw. Known as “rock breakers,” they’re efficient in breaking hard and abrasive materials.
Pros: Robust, low operational cost
Cons: Produce irregular shapes, limited fine material
Application: Ideal for primary stage
Gyratory crushers operate similarly to jaw crushers but feature a rotating, eccentric conical head.
Pros: High capacity, continuous operation
Cons: More complex structure
Application: Mostly primary crushing in large-scale operations
Cone crushers compress material between a moving piece of steel and a stationary one.
Pros: Versatile, excellent for shaping
Cons: Requires steady feeding, potential for clogging
Application: Secondary or tertiary

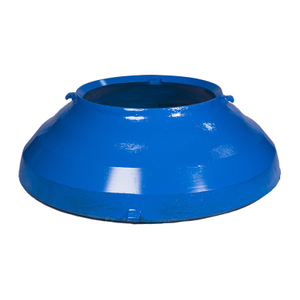

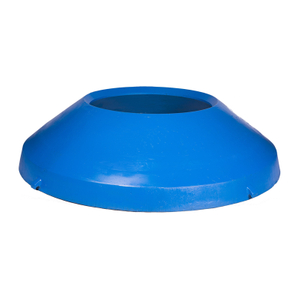

Cone Crusher Parts include the mantle, bowl liner, and concave, all designed to endure extreme wear and facilitate optimal crushing.
Impact crushers operate by throwing material against anvils or using blow bars.
Pros: High reduction ratio, good for shaping
Cons: Less suitable for abrasive material
Application: Secondary and tertiary
Impact Crusher Parts such as blow bars, rotors, and breaker plates are essential for sustaining efficiency and product shape.
Roll crushers use two rotating cylinders to crush material.
Pros: Produces uniform product size, low dust
Cons: Not suitable for very hard materials
Application: Soft to medium materials
Roll Crusher Parts like the roll shell and bearings play a pivotal role in crushing consistency and machine longevity.
Hammer crushers utilize swinging hammers to crush materials by impact.
Pros: Simple design, high reduction
Cons: High wear rates
Application: Soft to medium materials
Hammer Crusher Parts include hammers, grates, and rotor components vital to impact and durability.
| Type | Pros | Cons |
| Stationary | Higher capacity, lower cost, easy maintenance | Requires large space |
| Portable | Flexibility, mobility | Limited capacity, higher cost |
Depending on the operational needs, companies may opt for stationary, modular, or portable crushing units.
Understanding the nature of the material is crucial:
Hardness (Mohs scale)
Abrasiveness
Moisture content
Density
For example:
Limestone → Best for impact crushers
Granite → Best for cone crushers or jaw crushers
Sandstone → Moderate hardness, suitable for most crushers
Crushing systems are often designed around the desired end-product:
Coarse aggregate (e.g., 6" minus) → Jaw crushers
Fine sand → Impact crushers or VSIs
Cubical particle shape → Cone or impact crushers
Choosing the right crusher also involves analyzing long-term cost efficiency:
| Crusher Type | Avg. Maintenance Frequency | Replacement Parts Cost | Energy Use Efficiency |
| Jaw Crusher | Low | Medium | Moderate |
| Cone Crusher | Medium | High | High |
| Impact Crusher | High | High | Moderate |
| Gyratory Crusher | Medium | High | High |
| Roll Crusher | Low | Low | High |
With the rise of smart mining, modern crusher systems now integrate sensors and AI-based analytics. These advancements offer:
Predictive maintenance
Real-time performance monitoring
Load balancing
Energy optimization
Manufacturers are now focusing on environmentally friendly crushing systems:
Noise reduction technologies
Dust suppression systems
Lower energy consumption motors
Increasing demand for fast, adaptable solutions has made modular crushing systems popular. These pre-engineered setups can be easily assembled, disassembled, and relocated.
Understanding the crushing process in depth is essential for ensuring productivity and efficiency in material processing operations. The selection of the appropriate crusher, from jaw crushers to impact crushers, depends on numerous variables such as material characteristics, desired output, and operating costs.
Moreover, keeping spare Crusher Parts like Jaw Crusher Parts, Cone Crusher Parts, Impact Crusher Parts, Hammer Crusher Parts, and Roll Crusher Parts readily available ensures minimal downtime and uninterrupted productivity.
With evolving technologies and growing emphasis on efficiency and environmental compliance, the crusher industry continues to adapt. By staying informed and making data-backed decisions, operators can ensure long-term operational success in a competitive landscape.
