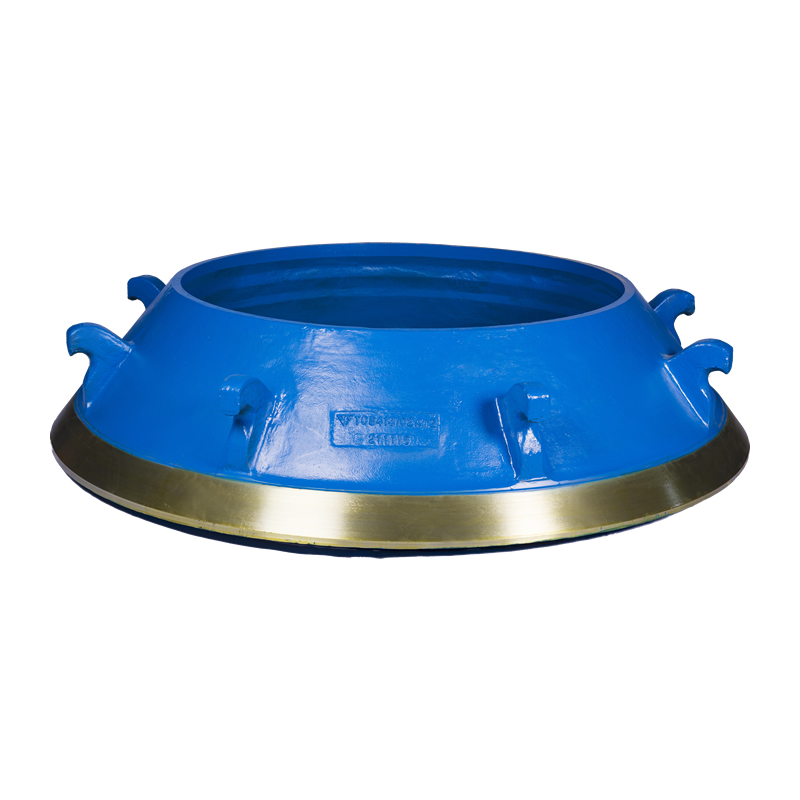

The cone crusher lining plate is a critical component designed for optimal performance in high-stress crushing applications. Customizable options are available to meet specific operational requirements, ensuring compatibility with various equipment configurations and material processing needs.
Material Specifications
Constructed from high-quality high manganese steel alloys, including Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn22Cr2Mo, and other specialized grades, these lining plates offer exceptional wear resistance, toughness, and durability. The material composition is engineered to withstand intense abrasion and impact forces typical in heavy-duty crushing environments.
Applications
The cone crusher lining plate is widely used in industries requiring efficient reduction of hard and medium-hard ores and rocks. Typical applications include:
-
Road Construction: Stone crushing for aggregate production in highway and infrastructure projects.
-
Construction Waste Recycling: Processing of concrete, masonry, and debris for sustainable material reuse.
-
Metallic Mining: Crushing of iron ore, copper ore, and other metallic minerals.
-
Non-Metallic Mining: Processing of limestone, quartz, feldspar, and other non-metallic ores.
-
Aggregate Production: Gravel crushing and screening for construction and industrial use.
-
Artificial Sand Manufacturing: River pebble processing for high-quality machine-made sand.
Key Components
The cone crusher system comprises a comprehensive range of precision-engineered parts, including:
-

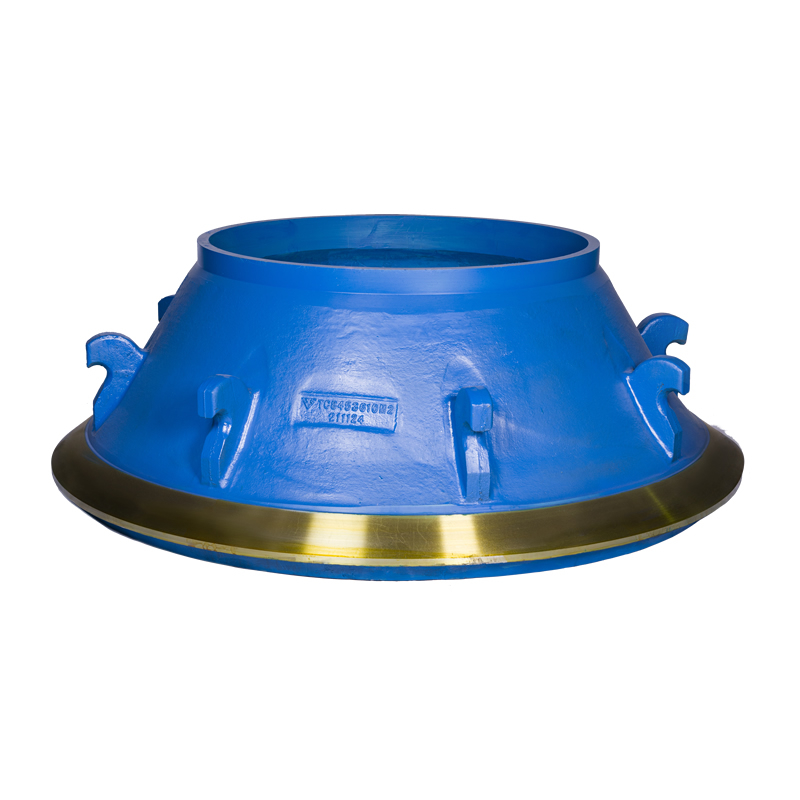

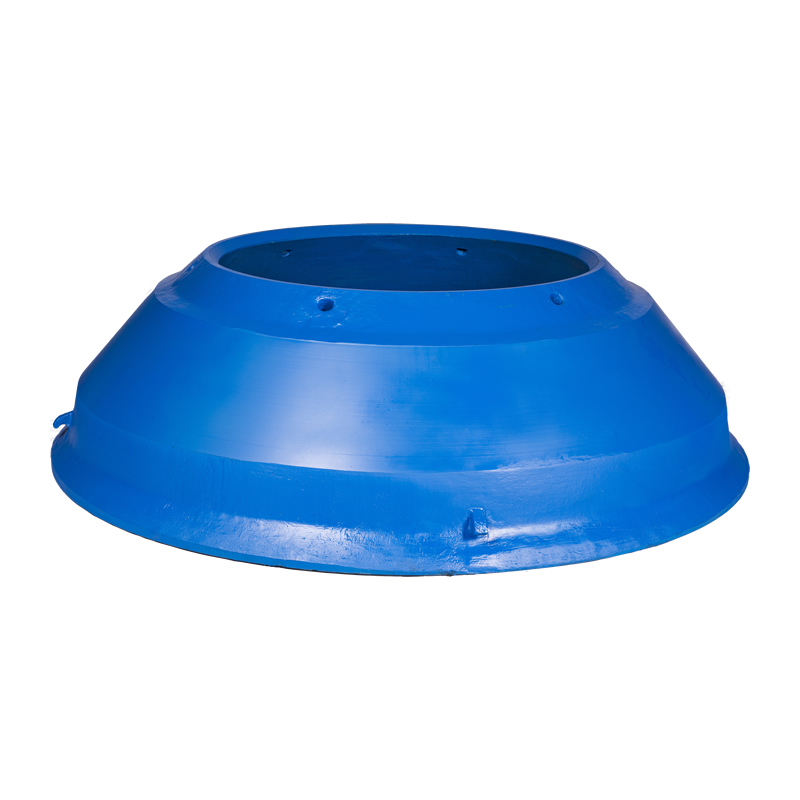

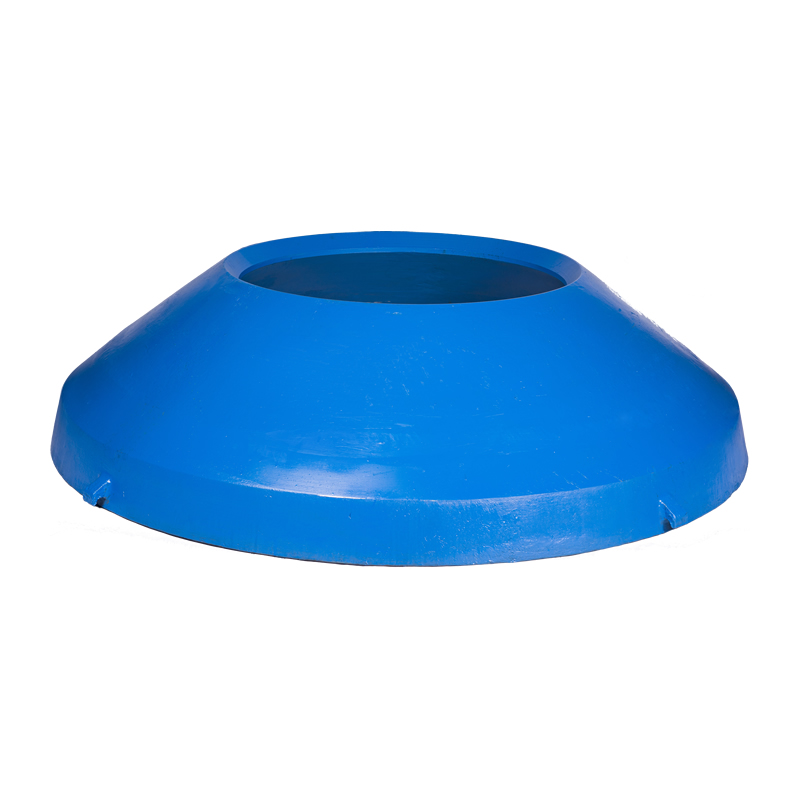

Wear Components: Mantle, bowl liner, concave, fixed cone, moving cone, feed cone, check plate, arm liner, cone lining plates.
-
Structural Components: Pressure sleeves, cutting rings, eccentric bushing, main shaft bushing, eccentric sleeve, arm shield, conecave ring, casting compound, top shell, supporting ring, main shaft sleeve, main shaft, bottom shell, wearing plate.
-
Sealing and Support Systems: Spider cap, spider bushing, dust seal ring, bearing assembly.
Industry Compliance
All components adhere to strict industry standards for material composition, mechanical properties, and dimensional accuracy. The design ensures optimal performance, longevity, and safety in demanding crushing operations.
Customization Options
Tailored solutions are available to address specific operational challenges, including adjustments for material hardness, throughput requirements, and equipment integration.
Global Applications
Suitable for use in mining, quarrying, construction, and recycling sectors, these components are engineered to deliver consistent performance across diverse geological and operational conditions.
Production Process：
