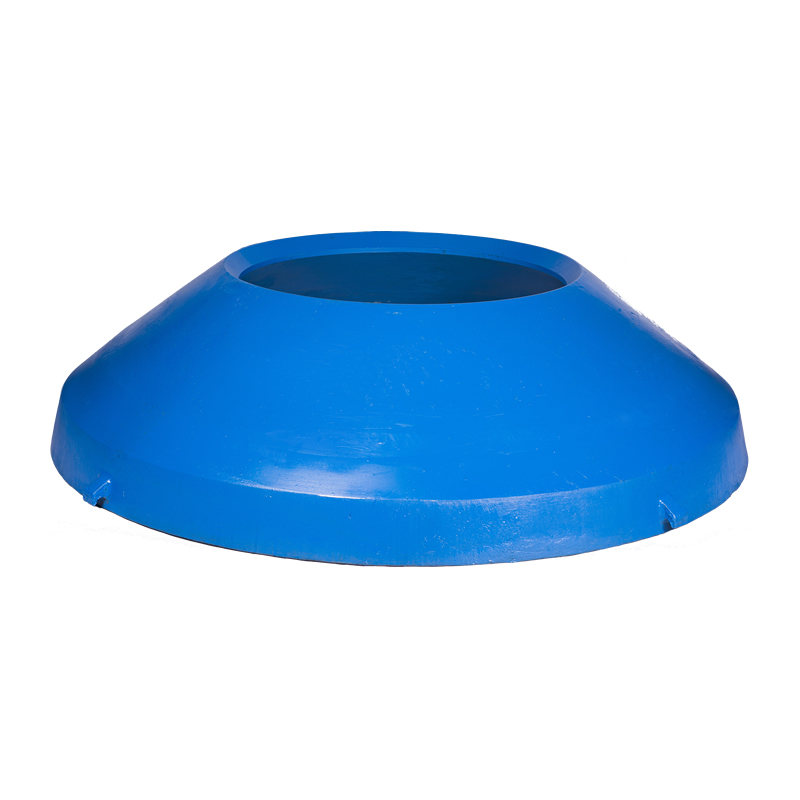

TRIO TC845 Mantle Cone Crusher Spare Parts wear resistant high resistant manufacturer

Model:

Material:

• High Manganese Steel: Common materials include Mn13Cr2, Mn18Cr2, Mn22Cr2, Mn22Cr2Mo, etc.
• Features: High wear resistance, excellent toughness, suitable for high-stress crushing environments.

Use:

• Primary Application: Used for crushing hard and medium-hard ores and rocks.
• Functions:
• Mantle: Protects the main shaft and distributes pressure evenly.
• Bowl Liner: Directly contacts the material, ensuring efficient crushing.
• Concave: Works with the mantle to form the crushing chamber.
• Fixed Cone & Moving Cone: Facilitates the crushing action by adjusting the gap.
• Feed Cone: Guides material into the crushing chamber.
• Check Plate: Prevents oversize material from exiting.
• Arm Liner: Protects the arm from wear.
• Cone Lining Plates: Provides additional protection and wear resistance.

Main Parts:

• Cone Crusher Components:
• Mantle: The moving part that crushes material.
• Bowl Liner: Fixed part that forms the crushing chamber with the mantle.
• Concave: Adjusts the gap for different crushing sizes.
• Fixed Cone: Stationary part of the crushing chamber.
• Moving Cone: Rotates and moves to crush material.
• Feed Cone: Directs material into the crusher.
• Check Plate: Ensures proper particle size.
• Arm Liner: Protects the arm assembly.
• Cone Lining Plates: Additional wear protection.
• Pressure Sleeves: Distributes pressure.
• Cutting Rings: Assists in material separation.
• Eccentric Bushing: Controls the movement of the moving cone.
• Main Shaft Bushing: Supports the main shaft.
• Eccentric Sleeve: Transmits rotational motion.
• Arm Shield: Protects the arm from debris.
• Conecave Ring: Adjusts the gap between the mantle and concave.
• Casting Compound: Used for repair and reinforcement.
• Top Shell: Upper part of the crusher housing.
• Supporting Ring: Stabilizes the crusher.
• Main Shaft Sleeve: Protects the main shaft.
• Main Shaft: Central rotating component.
• Bottom Shell: Lower part of the crusher housing.
• Wearing Plate: Protects the bottom shell from wear.
• Spider Cap: Secures the top assembly.
• Spider Bushing: Supports the spider assembly.
• Dust Seal Ring: Prevents dust ingress.
• Bearing: Supports rotational components.

Application Areas:

• Road Construction Stone Crushing: Used in the production of aggregates for road building.
• Construction Waste Crushing: Recycles concrete and other materials.
• Metal Mine Ore Crushing: Processes ores from metal mines.
• Non-Metallic Mine Ore Crushing: Handles non-metallic minerals like limestone and quartz.
• Gravel Crushing and Screening: Produces graded gravel for construction.
• River Pebbles Machine-Made Sand: Converts river pebbles into sand for concrete and other applications.

Customization Options:

• Material Selection: Choose from various high manganese steel grades based on specific wear requirements.
• Design: Custom shapes and sizes to fit different crusher models.
• Hardness and Toughness: Adjust material properties for optimal performance in specific applications.
• Surface Treatment: Options like heat treatment to enhance wear resistance.

Benefits:

• Long Service Life: High manganese steel ensures durability even in abrasive conditions.
• High Efficiency: Properly designed lining plates maximize crushing efficiency.
• Cost-Effective: Customization reduces material waste and maintenance costs.
• Versatile Applications: Suitable for a wide range of crushing tasks in different industries.
