Ball mills are indispensable equipment in mineral processing industries, performing vital functions such as grinding, crushing, and milling various ores and minerals. An essential aspect that significantly impacts the efficiency and longevity of a ball mill is the choice of suitable liners. Ball Mill Liners, a critical component of Ball Mill Parts, directly influence the performance and service life of ball mills. This article delves deep into different liner types, their benefits, and their suitability based on specific operational needs.

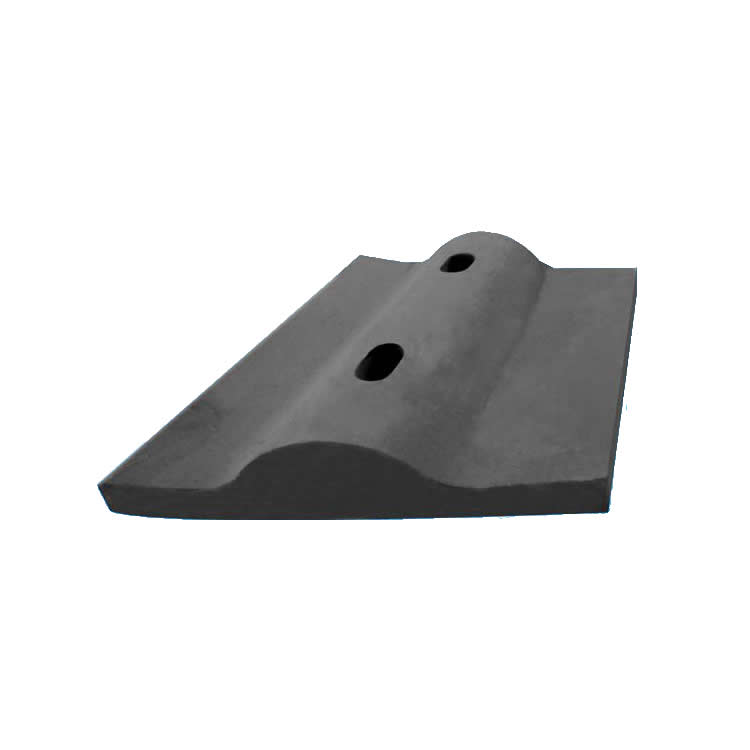

Ball Mill Liners are protective layers installed inside the ball mill barrel. They shield the mill shell from direct impact and abrasion from the grinding process. Typically manufactured from rubber, composite, or steel materials, liners influence grinding efficiency, energy consumption, and mill maintenance intervals. The correct choice of liner significantly impacts grinding media motion and the overall milling process.
Selecting the appropriate ball mill liner involves careful consideration of the application, milling conditions, and desired outcomes. The major liner types include:
Rubber liners are increasingly popular in ball mill applications due to their excellent wear resistance and ease of installation. They are generally lighter compared to traditional steel liners, facilitating manual handling without the need for heavy machinery.
Reduced noise levels, creating safer and more comfortable working conditions
Excellent sealing properties, minimizing mineral lock-up
Lower weight, decreasing stress on bearings and reducing startup torque
Virtually eliminating blinding of grate plates, thereby enhancing throughput
Rubber liners are particularly suited for small to medium-sized ball mills or operations involving acidic or corrosive slurries.
These liners combine rubber with other materials, typically steel inserts or composites, enhancing durability and impact resistance.
Superior abrasion and impact resistance due to composite construction
Increased lifespan compared to traditional rubber liners
Lower maintenance requirements, resulting in increased uptime
Composite liners are suitable for high-wear applications or larger ball mills where greater strength and durability are required.
Steel liners, made from high-strength alloys or Hardox steel, are preferred for heavy-duty grinding operations involving highly abrasive materials. The hardness and toughness of steel liners significantly increase wear resistance.
Exceptional durability and lifespan under severe grinding conditions
High impact strength, especially suited for larger, heavy-duty ball mills
Effective protection for ball mills processing hard ores
Steel liners typically incorporate Hardox 500 steel in high-impact areas, such as lifter bars and shell plates, providing unmatched abrasion resistance.
To help operators choose the most suitable liner, let's examine a detailed comparison:
| Criteria | Rubber Liners | Composite Liners | Steel Liners |
|---|---|---|---|
| Material | Rubber | Rubber + Steel/Composites | Steel (Hardox 500) |
| Installation Method | Hand (Lightweight) | Moderate (some tools) | Requires liner handler |
| Noise Reduction | High | Medium | Low |
| Abrasion Resistance | Medium | High | Very High |
| Corrosion Resistance | High | High | Medium |
| Maintenance Frequency | Low | Low | Moderate |
| Cost Efficiency | High | Moderate | Moderate to Low |
This table offers clear insights into liner suitability based on operational demands.
Liner thickness, length, and design must match mill dimensions precisely. Large mills typically require heavy-duty steel liners or robust composite liners for optimal protection.
The type and size of Ball Mill Grinding Media used significantly influence liner selection. Larger Ball Mill parts steel balls exert higher impact forces, necessitating stronger liners such as composite or steel variants.
Mills processing acidic or corrosive ores require chemically resistant liners. Rubber liners or composites are usually best in these environments due to their high corrosion resistance.
If reducing maintenance and downtime is a priority, rubber and composite liners offer significant advantages. Conversely, maximum impact and abrasion resistance for long-term performance favors steel liners.
Modern liners designed using advanced software-driven technologies, such as those provided by Multotec, significantly enhance operational efficiencies. These designs:
Optimize ore trajectory within the mill, improving grinding performance
Minimize wear and maximize liner life through precise predictive modeling
Facilitate custom solutions tailored specifically to individual milling requirements
Ball mills comprise several key components critical to their function and efficiency. Beyond liners, essential Ball Mill Parts include:
Steel Balls (Grinding Media): Critical for grinding and pulverizing ores, the correct size and hardness directly impact grinding efficiency.
Shell Plates: Protect the mill’s shell; available in varying thicknesses to balance capacity and liner durability.
Lifter Bars: Enhance grinding efficiency by maximizing ore agitation; reinforced with Hardox 500 steel for improved durability.
Head Plates: Provide end-protection for the mill, effectively extending its operational lifespan.
Optimizing these components ensures comprehensive operational efficiency.
Recent advancements in liner technologies indicate trends towards greater customization and smart liner solutions. Operators increasingly prefer:
Liners incorporating wear sensors, enabling real-time monitoring and predictive maintenance.
Composite liners with innovative material blends offering exceptional impact and abrasion resistance.
Sustainable and recyclable materials contributing to environmentally friendly mining operations.
These developments align with global trends emphasizing operational sustainability, cost-effectiveness, and increased productivity.
Utilizing detailed data analysis significantly enhances liner selection and mill optimization. Comparative data and case studies from industry-leading manufacturers like Multotec clearly demonstrate liner performance benefits:
Extended liner life by up to 40% using composite or reinforced liners
Up to 25% reduced maintenance downtime with rubber and composite liners
Improved energy efficiency (reduced startup torque) by over 15% with lightweight liners
The optimal liner choice for a ball mill depends significantly on operational requirements, environmental conditions, and efficiency goals. Rubber liners provide ease of installation, noise reduction, and corrosion resistance ideal for small to medium operations. Composite liners offer superior durability and abrasion resistance, making them suitable for medium to large mills. Steel liners remain unmatched for heavy-duty applications demanding extreme durability and strength.
Selecting the most suitable Ball Mill Liners and related Ball Mill Parts is crucial in optimizing grinding efficiency, extending mill lifespan, and minimizing operational downtime. By carefully assessing the specific operational requirements and leveraging modern technological advances, operators can significantly enhance mill performance and achieve long-term, sustainable operational success.
