Jaw crushers are one of the most commonly used pieces of equipment in the mining and construction industries. These machines are essential for reducing the size of large rocks and materials to smaller, more manageable pieces. Whether in mining operations, road construction, or recycling, jaw crushers play a critical role in ensuring that the materials are broken down to the required size for further processing. But not all jaw crushers are the same, and there are several different types to choose from.
In this article, we will explore the most common type of jaw crusher, its features, how it works, and how to choose the right jaw crusher for your needs. We will also discuss key components like jaw crusher parts and compare jaw crushers to other crushers such as impact crushers, to help you understand the best applications for each machine.
Jaw crushers are primary crushers commonly used for reducing large rocks into smaller sizes. They operate by using a pair of jaws—one fixed and one movable—to apply compressive force to the material being fed into the crusher. This force crushes the material by compressing it between the two surfaces. The gap between the jaws can be adjusted, which allows for controlling the size of the output material.
The jaw crusher is known for its rugged design, simplicity, and ability to handle tough materials. Over the years, jaw crushers have been improved to provide better efficiency, longer service life, and increased capacity. However, the core principle of the jaw crusher has remained the same, making it a reliable and highly effective machine for many different industries.
Understanding how a jaw crusher works is crucial in appreciating its design and functionality. The jaw crusher uses compressive force to break down material. This is achieved by two jaws—the fixed jaw and the movable jaw.
Material Feed: Material enters the crusher from the top and is drawn into the crushing chamber between the jaws.
Compressive Force: The movable jaw moves towards the fixed jaw, compressing the material in between. The crushing action reduces the size of the material.
Output: The size of the material is reduced as it is crushed and forced out through the gap between the jaws, called the discharge opening. This size can be adjusted by altering the gap between the two jaws.
A typical jaw crusher operates with a crushing ratio between 6:1 and 8:1, meaning that for every 6 to 8 units of material that enter the crusher, one unit of material will exit after being crushed.
Jaw crushers are made up of several key components that enable them to function properly and efficiently. These parts include:
Fixed Jaw: This stationary part is mounted onto the frame and stays in place during operation.
Moving Jaw: The moving jaw is mounted on a pitman and moves back and forth to crush the material.

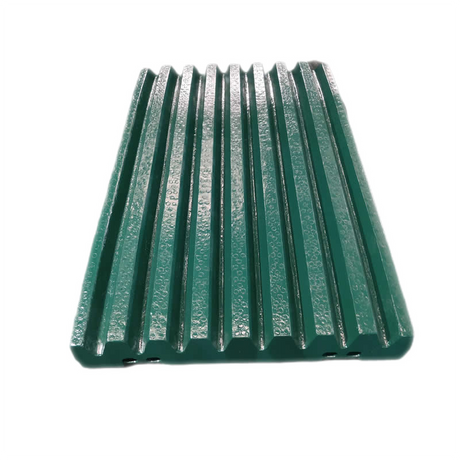

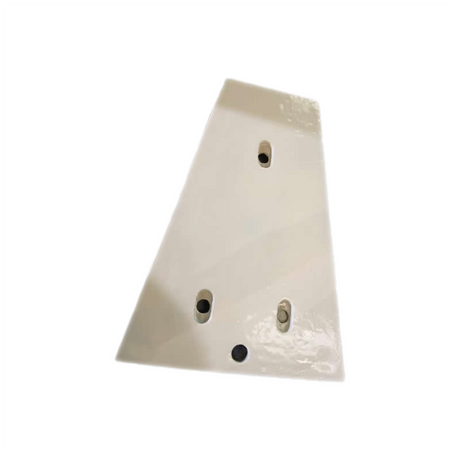

Jaw Liners: These replaceable wear parts are typically made of manganese steel, which allows them to withstand the force and impact of the material being crushed.
Main Shaft: The main shaft connects the moving jaw to the drive mechanism, allowing the jaw to move.
Drive Pulley & Flywheel: The flywheel helps to balance the load and stores energy for the crushing action.
Toggle Plate(s): These are used to adjust the gap between the jaws and help protect the machine during overload situations.
Tension Rods/Assembly: These parts help adjust and maintain the correct tension on the toggle plates.
Understanding the function of each of these jaw crusher parts is important for maintaining the equipment and ensuring efficient operation. Wear and tear on these components, particularly the jaw plates and jaw liners, can significantly affect the performance and efficiency of the crusher.
The most common type of jaw crusher is the Blake jaw crusher, which is the design that has become synonymous with the term "jaw crusher" in the industry. The Blake jaw crusher is designed with a fixed jaw at the bottom of the crushing chamber and a movable jaw that moves towards the fixed jaw at the top. This design allows for a wide range of feed sizes, making it ideal for primary crushing in many mining and quarrying operations.
The Blake jaw crusher is the most widely used type of jaw crusher due to its simple design, reliability, and versatility. It is primarily used for primary crushing in quarries, mining, and recycling industries.
Fixed Jaw Position: The fixed jaw is positioned at the bottom, while the movable jaw is located at the top of the machine.
Adjustable Discharge Area: The gap between the jaws can be adjusted to control the size of the output material.
Higher Crushing Efficiency: The Blake jaw crusher has a higher crushing efficiency, which makes it ideal for reducing hard and abrasive materials like granite and ores.
Simple and Robust Design: It is easy to operate and maintain, with fewer moving parts.
High Crushing Capacity: The Blake design allows for higher throughput, making it suitable for heavy-duty applications.
Versatility: Suitable for crushing a wide variety of materials, including hard and soft rocks.
Limited Control Over Output Size: While adjustable, the Blake jaw crusher has less flexibility in output size compared to some other types of crushers.
While the Blake jaw crusher is the most popular, there are other variations of jaw crushers that are used in specific applications. These include the Dodge jaw crusher and the Universal jaw crusher.
The Dodge jaw crusher is designed with the swing jaw positioned at the bottom of the machine. In this design, the material is crushed as the movable jaw moves towards the fixed jaw, creating a smaller gap and forcing the material out. This design is typically used for smaller-scale operations and where output size control is less critical.
The Universal jaw crusher combines elements of both the Blake and Dodge designs. The swing jaw is positioned at an intermediate position, which allows for more control over the size of the material being processed. It is a versatile design that is useful in both primary and secondary crushing stages.
Jaw crushers and impact crushers are both commonly used in the mining and construction industries, but they are designed for different applications and perform differently.
| Feature | Jaw Crusher | Impact Crusher |
|---|---|---|
| Primary Use | Primary crushing of hard materials | Secondary and tertiary crushing |
| Crushing Method | Compressive force | Impact force |
| Output Shape | Coarse, angular particles | Cubical, uniform particles |
| Material Suitability | Hard and abrasive materials | Softer, less abrasive materials |
| Typical Applications | Mining, aggregates, recycling | Construction, demolition, recycling |
Impact crushers use high-speed rotating rotors to strike the material, breaking it into smaller pieces. This design makes them more suitable for secondary and tertiary crushing, particularly for softer materials like limestone and asphalt.
Jaw crushers, on the other hand, use a compressive force to break down materials. This makes them ideal for primary crushing applications, where hard and abrasive materials need to be processed.
Jaw crushers are better for processing harder materials like granite and ores, while impact crushers are better for softer materials.
Jaw crushers produce coarser material, while impact crushers produce more uniformly sized material.
Impact crushers tend to have a higher reduction ratio than jaw crushers, making them more suitable for fine crushing.
Proper maintenance of jaw crushers is critical for ensuring long-term performance and efficiency. Here are some tips for maintaining your jaw crusher:
Regular Inspections: Inspect key parts such as the jaw plates, toggle plate, and eccentric shaft regularly to ensure that they are not worn out or damaged.
Lubrication: Ensure that all moving parts, including the eccentric shaft and pitman, are properly lubricated to reduce friction and wear.
Adjust the Jaw Gap: Adjust the gap between the jaws to control the size of the output material. Regular adjustments will help maintain optimal crushing performance.
Monitor Wear Parts: Keep an eye on the jaw crusher parts, especially the jaw plates and toggle plate, as these components wear out over time. Replacing worn parts in a timely manner will prevent breakdowns and maintain efficiency.
The Blake jaw crusher is the most common and widely used type of jaw crusher, known for its reliability and versatility. Its simple design makes it easy to maintain, while its high crushing efficiency and high capacity make it ideal for primary crushing applications. However, depending on your specific needs, you may also consider other types like the Dodge jaw crusher or the Universal jaw crusher.
When selecting a jaw crusher, it’s important to consider the material you’ll be crushing, the required output size, and the type of application. For harder materials, such as granite or ores, the Blake jaw crusher is often the best option. For softer materials, you might want to consider an impact crusher or other alternatives.
Understanding the key components like jaw crusher parts and their functions will help you better maintain your equipment and ensure long-lasting, efficient operation. Whether you're crushing hard rock or recycling concrete, the right jaw crusher will ensure you meet your production goals effectively and cost-efficiently.
