Hammer crushers are essential machinery in various industries, particularly in mining, cement, and construction. These machines are designed to break down hard, brittle materials like coal, limestone, gypsum, and salt into smaller particles, making them easier to handle and transport. They operate through a series of components that work together to crush materials, and understanding the major parts of a hammer crusher is crucial for improving its performance, maintaining its efficiency, and prolonging its lifespan.
In this article, we will dive deep into the key parts of a hammer crusher, explore their functions, and analyze the materials and design considerations that influence their performance. We will also discuss how choosing the right materials for hammer crusher parts—such as reinforced hammers, wear plates, and high manganese steel hammer crusher parts—can enhance the overall efficiency of the machine.
Before we break down the components, let's take a brief look at the hammer crusher as a whole. A hammer crusher machine, sometimes known as a hammer mill, is used primarily for breaking down materials by striking them with high-speed rotating hammers. These crushers are highly effective in crushing materials like coal, limestone, bricks, tiles, and other similar minerals that are hard yet brittle.
Hammer crushers generally consist of several parts, each playing a specific role in the crushing process. Understanding these parts helps in the selection of materials for manufacturing, ensuring proper maintenance, and identifying potential areas for improvement.
The rotor is one of the most critical components in the hammer crusher. It serves as the central axis of the machine and holds the hammers in place. The rotor is connected to a motor that causes it to spin at high speeds, thus imparting kinetic energy to the hammers. The material to be crushed is fed into the machine, and as it comes in contact with the high-speed rotor and hammers, it gets broken down.
Key Functions:
Provides the force to crush materials.
Supports the hammer head.
Transfers kinetic energy to materials for further breakdown.
The hammer is perhaps the most significant part of the hammer crusher. It is responsible for the crushing action. The hammers are typically attached to the rotor and rotate at high speeds to strike the incoming material.
Material Considerations:
The quality of the hammer material is crucial for the overall efficiency and durability of the hammer crusher.
Reinforced hammers are designed to provide extra strength and improve the lifespan of the hammer crusher, especially when dealing with tough, hard materials.
High-grade materials like high manganese steel are commonly used in hammer manufacturing because of their excellent wear resistance properties.
Key Functions:
Breaks down large particles by striking them.
Wear plates can be attached to the hammers for further protection against wear.
The hammer shaft serves as the connection point for the hammers and the rotor. It is the part that transmits the rotational force from the motor to the hammer heads. This shaft is designed to withstand significant mechanical stress, as it is subjected to constant force and vibration.
Key Functions:
Connects the rotor to the hammer heads.
Transmits rotational power to the hammer.
The housing or box of the hammer crusher is the structure that contains the internal components such as the rotor, hammer shaft, and hammers. It ensures that the material remains within the crushing area during the crushing process.
Key Functions:
Houses the rotor, hammers, and other essential parts.
Provides structural support to the machine.
Ensures that the material is confined during the crushing process.
The impact plate is a crucial component in many hammer crushers. It is positioned within the machine, just opposite to the hammers. When the material is struck by the hammers, it often hits the impact plate, which further assists in breaking the material into smaller pieces.
Key Functions:
Works with the hammers to break down material into finer particles.
Protects the housing from direct impact with the material.
The sieve plate or screen is a mesh-like structure that controls the size of the material that is discharged from the hammer crusher. It is located at the bottom of the crusher, below the rotor. The sieved material that passes through the holes in the sieve plate will be removed from the machine, while oversized particles will be further crushed.
Key Functions:
Controls the output size of the crushed material.
Ensures that only adequately sized particles are discharged.
The discharge port is where the crushed material exits the hammer crusher. This part is adjustable, allowing the operator to control the size of the material being processed.
Key Functions:
Directs the output material to the next stage of processing.
Can be adjusted to meet specific requirements for material size.
One of the essential components in a hammer crusher is the hammer head, and when it comes to durability, reinforced hammers are often used. These hammers are designed to handle tougher materials and more rigorous crushing conditions, especially in industries where high-volume production and constant wear are common. Reinforced hammers can withstand high-impact forces, thus ensuring that the machine operates efficiently over extended periods.

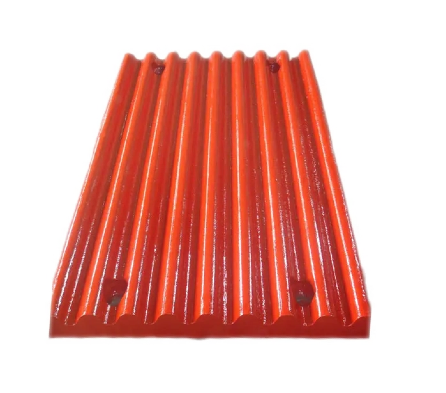

Another significant aspect of hammer crusher performance is the use of wear plates. These are plates designed to absorb the constant wear caused by the grinding and crushing process. Wear plates are often used in the impact zone, where the material makes contact with the hammers and impact plates. By using high-quality wear plates, the efficiency of the hammer crusher can be enhanced, and downtime for maintenance and replacement of worn parts can be minimized.
For hammer crushers, one of the best materials for the hammers and other critical components is high manganese steel. This material is known for its excellent wear resistance and durability. The high manganese content ensures that the crusher can handle tough, abrasive materials without the risk of excessive wear or cracking. It also has a high level of toughness, making it resistant to shock and impact.
Choosing high-quality parts for your hammer crusher is not just about improving performance; it also impacts the machine's overall lifespan and efficiency. Some key benefits of using premium-quality components include:
Extended Service Life: Components like reinforced hammers and wear plates made from durable materials like high manganese steel ensure that the hammer crusher performs for a longer period before requiring replacement or repairs.
Improved Performance: With better materials and construction, the hammer crusher can crush materials more effectively, resulting in higher productivity.
Reduced Downtime: High-quality parts are less prone to damage and wear, reducing the frequency of maintenance and downtime.
Cost Savings: Though high-quality parts may be more expensive initially, their durability leads to fewer repairs and replacements, providing long-term cost savings.
Understanding the major parts of a hammer crusher and the materials used in their construction is vital for maximizing the machine's performance, efficiency, and lifespan. The hammer, rotor, sieve plate, impact plate, and crusher housing all play specific roles in ensuring that materials are effectively crushed. By choosing durable materials like reinforced hammers, wear plates, and high manganese steel hammer crusher parts, operators can improve the overall performance and reduce maintenance costs.
For those looking to invest in a hammer crusher, it is essential to not only understand the function of each part but also to carefully consider the materials used in these components. Selecting the right hammer crusher parts can make a significant difference in productivity and cost efficiency in the long run.
