Accurate Setting Procedure of Initial Closed Side Setting after New Mantle Replacement & Comparison of Two Measuring Methods

I. Preconditions for Setting Initial Closed Side Setting after Mantle Replacement

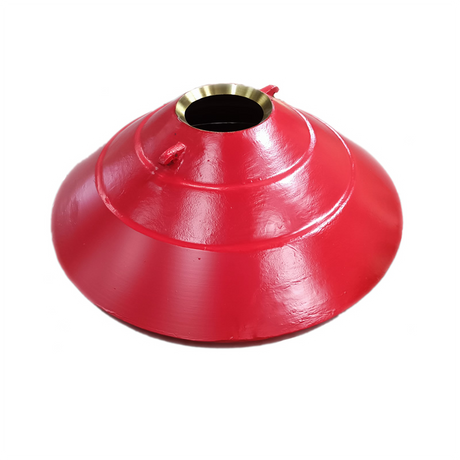

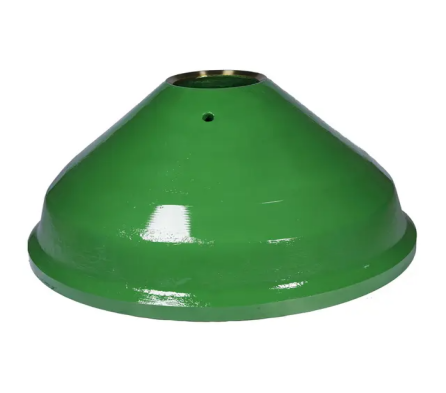

As the fixed cone wear-resistant liner of cone crushers, a brand-new mantle features an inner surface free of worn depressions and intact curved profiles. The fitting clearance between the mantle and moving cone directly determines product particle size, crushing load and liner service life. After replacing the mantle, parameters of the worn old liner cannot be adopted directly, and the initial clearance must be recalibrated for three core reasons:

1. Long-term ore extrusion and friction form an even wear layer on the inner surface of old mantles. Under the same adjustment ring height, the actual closed side setting will gradually expand; new liners are manufactured in compliance with original factory specifications, fully resetting the clearance benchmark.

2. Assembly deviations may exist during mantle installation, including the levelness of the support sleeve, thickness of liner filling alloy and pre-tightening torque of lock bolts, which easily cause uneven circumferential clearance of the crushing chamber and require correction via actual measurement.

3. Deviations in initial clearance settings trigger two types of operating faults: an excessively narrow clearance leads to crusher stall and liner collision; an excessively wide clearance results in oversized discharge particles and increases the load of downstream screening and crushing processes.

Standard Procedure for Setting Initial Closed Side Setting

1. Assembly Inspection: Align the mantle positioning grooves and ensure filled zinc alloy is fully cured. Tighten lock bolts symmetrically in cross pattern to the torque specified in the equipment manual, then clear debris, welding slag and filler residues inside the crushing chamber.

2. No-load Trial Run: Start the crusher and operate without feed for 10–20 minutes. Check that the main shaft and eccentric sleeve run without abnormal noise, hydraulic/spring locking mechanisms operate smoothly with no leakage or bouncing.

3. Rough Clearance Adjustment: Rotate the adjustment ring to lift or lower the fixed cone for preliminary adjustment based on target product particle size. General industrial practice suggests setting the initial closed side setting within a range of 1.3 to 1.6 times the controlled finished particle size.

4. Multi-point Actual Measurement: Select 4 to 6 evenly distributed measuring points around the crushing chamber circumference and record clearance values via lead block or laser equipment.

5. Fine-tuning & Correction: If dimensional differences among circumferential points exceed allowable tolerances (≤25% for spring cone crushers; ≤20% for single-cylinder hydraulic cone crushers), shut down the unit to inspect support sleeve levelness and liner flatness, then re-adjust the ring until uniform clearance is achieved.

6. Lock & Fix: Lock the adjustment ring mechanism once dimensions meet requirements. Record measured initial closed side setting values as benchmark data for subsequent clearance compensation against liner wear.

II. Operating Specifications for Lead Block Measuring Method

The lead block measuring method is a long-established direct contact measurement technique widely applied in mining crushing sites. It relies on plastic deformation of lead metal to reproduce the minimum crushing chamber clearance, and all operations must be carried out under crusher no-load operation.

Standard Operating Steps

1. Material Preparation: Use cylindrical cast pure lead blocks with original diameter larger than the estimated initial closed side setting. Bind blocks with high-tensile steel wire with sufficient length for feeding and retrieval.

2. Point Feeding: Slowly feed one lead block at a time into the parallel extrusion zone of the crushing chamber at four equally spaced circumferential positions sequentially. Feeding multiple blocks simultaneously shall be avoided to prevent measurement distortion from overlapping extrusion.

3. Extrusion & Sampling: Keep the crusher running at low speed for 3 to 5 revolutions. The reciprocating swing of the moving cone compresses the lead block; pull the steel wire slowly to retrieve the deformed block.

4. Data Reading: Measure the thinnest cross-section of the compressed lead block with a vernier caliper. Calculate the arithmetic mean of multi-point readings as the actual closed side setting.

5. Repeated Verification: Repeat feeding for 2 to 3 rounds after adjusting the ring. Measurement data is deemed valid only when the difference between two average readings is no more than 1 mm.

Advantages of Lead Block Measuring Method

1. Low hardware investment: Only lead ingots, steel wires and vernier calipers are required without electronic equipment procurement, applicable to small and medium aggregate and mineral processing workshops.

2. Readings directly reflect the true closed clearance of the crushing parallel zone, free from interferences such as dust, lighting and machine vibration, with no drift errors of electronic components.

3. Simultaneous assessment of circumferential clearance uniformity: Thickness discrepancies of lead blocks at different points directly identify assembly defects including tilted support sleeves and partial liner mismatching, integrating measurement and fault diagnosis functions.

4. Low operation threshold: Maintenance crews can operate independently after brief training; measurements can be conducted during power outages without stable power supply.

Limitations of Lead Block Measuring Method

1. Time-consuming operation: A full round of four-point measurement and repeated verification takes 15 to 30 minutes, and prolonged downtime disrupts production line continuity.

2. Irregular deformation often occurs on compressed lead block cross-sections, introducing visual reading errors by operators; operator proficiency slightly affects data consistency.

3. Long-term heavy usage generates waste lead materials, requiring supporting management for collection and storage and incurring minor material consumption costs.

4. Large high-chamber cone crushers feature deep crushing chambers that restrict wire feeding and retrieval space, carrying minor safety risks of liner scratching.

III. Operating Specifications for Laser Measuring Method

The laser measuring method adopts pulsed laser ranging sensors as a non-contact clearance inspection solution, divided into portable handheld laser rangefinders and machine-integrated online laser monitoring systems, suitable for large-scale continuous crushing production lines.

Standard Operating Steps

1. Pre-treatment of Equipment: Clear accumulated dust and mineral powder at the crushing chamber mouth to prevent laser beam obstruction. Conduct measurements only after the crusher runs no-load with stable vibration amplitude.

2. Point Calibration: Aim the handheld laser device perpendicularly at cross-sections of the parallel zones of moving and fixed cone liners. Mark evenly distributed measuring points around the circumference and collect three groups of distance data continuously per point.

3. Clearance Conversion: The instrument automatically calculates relative vertical distances between moving and fixed liners, directly displaying closed side setting values and storing multi-point measurement data synchronously.

4. Calibration of Online Units: Before initial use of integrated laser systems, calibrate benchmarks against lead block measurement readings to eliminate systematic errors caused by equipment installation offset.

5. Data Archiving: Export multi-point clearance data and compare circumferential dimensional differences. Re-measure after fine-tuning the adjustment ring until tolerances are satisfied.

Advantages of Laser Measuring Method

1. Fast measurement: Complete data collection for six circumferential points on one crusher only takes 3–8 minutes, drastically cutting calibration downtime and reducing production loss.

2. Digital output: Multiple sets of measurement data are automatically recorded and stored to track mantle wear trends over long periods and facilitate liner replacement cycle filing.

3. Non-contact measurement eliminates the need to feed metal pieces into the crushing chamber, removing risks of new mantle curved surface scratching and providing superior protection for newly installed liners.

4. Integrated laser units support real-time online monitoring, continuously feeding back clearance variations during production without frequent shutdown sampling.

Limitations of Laser Measuring Method

1. Sustained capital expenditure for initial procurement and periodic calibration & maintenance, raising operation costs for small crushing stations.

2. Limited environmental adaptability: High-concentration dust and water mist at crushing sites scatter laser beams and cause reading fluctuations, requiring multiple sampling and averaging to offset interferences.

3. Vibration resistance of equipment has an upper limit. Intense crusher vibration impairs positioning precision of laser sensors, requiring full benchmark recalibration before each batch of liner replacement.

4. Basic operational skills are required for operators to master light path cleaning and data calibration; on-site troubleshooting of faulty electronic components is more complex than lead block measuring tools.

IV. Comprehensive Comparison & Selection Guidelines for the Two Measuring Methods

Comparison of Core Indicators

表格

On-site Selection Reference

1. Intermittent production, small & medium crushing workshops with low monthly liner replacement frequency: Prioritize the lead block measuring method for initial closed side setting calibration due to low costs and strong environmental adaptability.

2. Large-scale continuous crushing lines requiring long-term liner wear data tracking and reduced downtime: Adopt laser measuring equipment as the primary tool, with lead block measurement as the monthly benchmark recheck. Combined application of both methods reduces data deviations brought by single measurement techniques.

3. Recommended combined calibration workflow for brand-new mantles: First conduct rapid multi-point rough measurement via laser for preliminary clearance adjustment, then perform four-point lead block measurement for final verification. This balances measurement efficiency and data stability to ensure initial closed side setting complies with process control standards.

V. Long-term Maintenance Reminders after Calibration

After initial closed side setting calibration and production startup, mantles undergo continuous wear under ore feed, leading to gradual expansion of the closed side setting. Teams shall establish periodic inspection routines to sample clearance every 8–12 hours. When measured dimensions exceed 20% of initial set values, slightly lower the adjustment ring in a timely manner to compensate clearance, stabilize discharge particle size and slow overall mantle abrasion. The full calibration workflow described above shall be repeated upon every new mantle replacement; historical clearance data of worn liners cannot be reused to avoid benchmark deviations stemming from assembly and wear differences.
